Hardly clogged

It is hardly clogged with three-layer structure of filter materials.

corrosion-resistant

It is corrosion-resistant because filter materials are glass fiber.

Safe

Fumes are discharged as drain, however that is a very fine amount, so it is safe.

Super Fumer

Super Fumer Test machine

Draft Mate

Outline

  • It filters and collects with filters attached three-layer “filter materials (elements)” to a cylindrical retainer.
  • SUNTECHNO selects a type of machine to meet disposed air quantity(gas rate) of your scrubber. If it is a type of 15～80m3／min, you can choose from a standard type measurement table as below. For other types, we will design it based on spaces to be installed, gas rate of exhaust air and your requests, so that please feel free to contact us.

chart

Materials Filter materials Glass fiber, Glass fabric, Polypropylene fablic
Retainer SUS system, rigid PVC, SS
Band SUS system, PP, PE
Filter collecting capacity 95％ more than 0.1μm
Loss of pressure 200Pa～1.5kPa（～3.5kPa）

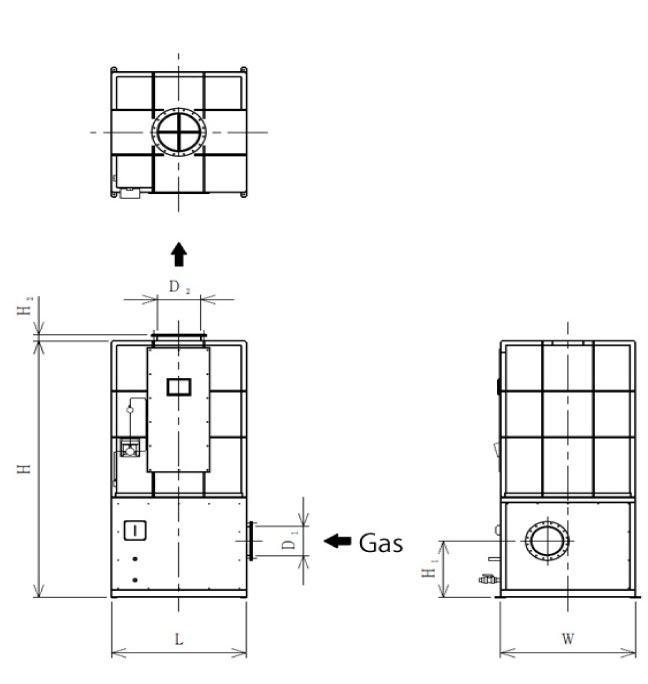

fan incorporated type Super Fumer

Type Gas
Rate
m3/min.		 Electric
Motot		 W L H D1 D2 H1  H2
SFC-20  20 1.5kW×2P 800 800 2,620 Ø216 Ø250 490 55
SFC-30  30 2.2kW×2P 800 800 2,620 Ø240 Ø300 590 55
SFC-40  40 2.2kW×2P 1,000 800 2,790 Ø318 Ø300 590 55
SFC-50,60  50,60 3.7kW×2P 1,200 1,200 2,840 Ø318 Ø420 590 65
SFC-80 80 5.5kW×2P 1,200 1,200 2,840 Ø318 Ø420 590 65

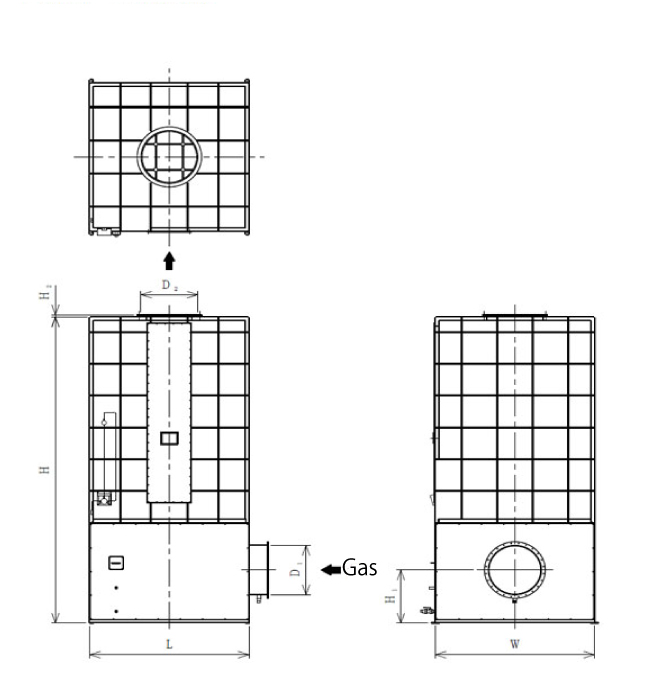

Large air quantity fan independent type

Type Gas
Rate
m3/min		 Electric
Motor		 W L H D1 D2 H1 H2
SFC-100 100 5.5kW×2P 1,500 1,500 3,000 370 420 690 65
SFC-120 120 5.5kW×4P 1,500 1,620 3,000 450 450 710 65
SFC-150 150 7.5kW×4P 2,000 1,900 3,200 450 520 815 65
SFC-400 400 18.5kW×2P 2,000 2,000 4,000 750 750 900 100
SFC-500 500 30.0kW×4P 2,000 2,500 4,200 850 850 900 200
  • Since our founding in 1967, we have manufactured a large variety of gas apparatuses more than “Super Fumer”, such as from a scrubber standardized compactly to an integrated processing scrubber and a silane gas processing scrubber.
  • Customization is available based on your condition of factories.
  • We will design and build it for your requests, so please feel free to contact us.
